What is the Profibus-DP?

Today Profibus-DP is one of the most commonly used networks in industrial automation.  Profibus stands for “Process Field Bus” and “DP” stands for “Decentralized Peripherals”.


In this tutorial, we’re going to learn all about Profibus-DP and what exactly it decentralizes. Imagine that we have a bunch of sensors and actuators in the field area that we want to connect to the PLC’s I/O modules which are located about 2000 feet away from in the control room.
             To do this we need to connect each one of these sensors to the PLC with a separate wire, so bearing in mind the 2000 feet distance, we’re going to end up with a huge number of parallel wires and this can increase the cost of installing the system.

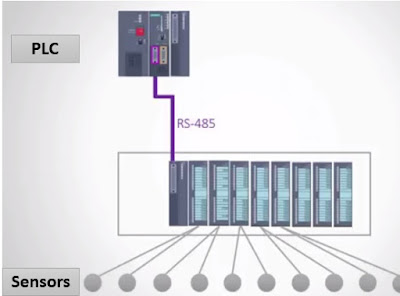

Now let’s see how the wiring will change when we utilize a Profibus-DP network.  At the moment our I/O modules are situated right next to the CPU.  To use Profibus-DP we can put an enclosure near the sensors in the field area and then move the I/O modules into it; then we can connect the sensors to the I/O modules.  Now, to enable data transfer between the PLC in the control room and the I/O modules in the new enclosure we are going to install an IM or Interface Module here; then we can use Profibus-DP and an RS-485 cable to transfer all data.



















So, previously the PLC's I/O modules were arranged centrally but by introducing a network bus between the main controller and its I/O modules we DECENTRALIZED the I/Os, moving them to this enclosure in the field area. That's why this type of Profibus has the added suffix of “DP” or “Decentralized Peripherals”. We usually call these Decentralized Peripherals "Remote I/O. "So using Profibus-DP, instead of wiring each individual sensor, actuator or other facility to the PLC individually, we can install a set of “remote I/Os” next to these facilities in the field area and then transfer the data to the control area using a single RS-485cable.
This can decrease the cost of wiring dramatically and on the top of that, since the data transmission method here is “digital”, industrial environment noise has less of impact on data, so data communication between the control and field areas will be more robust.But there are a number of disadvantages with Profibus-DP.  For instance, because we are transferring data with a single cable, if it malfunctions in any way we’ll lose all the data from the field facilities.  To prevent this problem, some applications have some of the main signals connected directly to the PLC and transfer the rest of the signals using Profibus-DP.

With this wiring configuration, even if the data cable goes down for any reason, the signals from important facilities are not lost.  This method is called hybrid. Another solution is to utilize Profibus-DP as a “redundant” network.  In this method we use two “RS-485”cables to connect the remote I/Os to the PLC.  In this configuration, if the main cable goes down, the data transfer can be switched to the reserve cable with no problems.  So to recap, “Profibus-DP” is a type of industrial network which decreases the amount of wiring required by “decentralizing ”the PLC's I/O modules.
